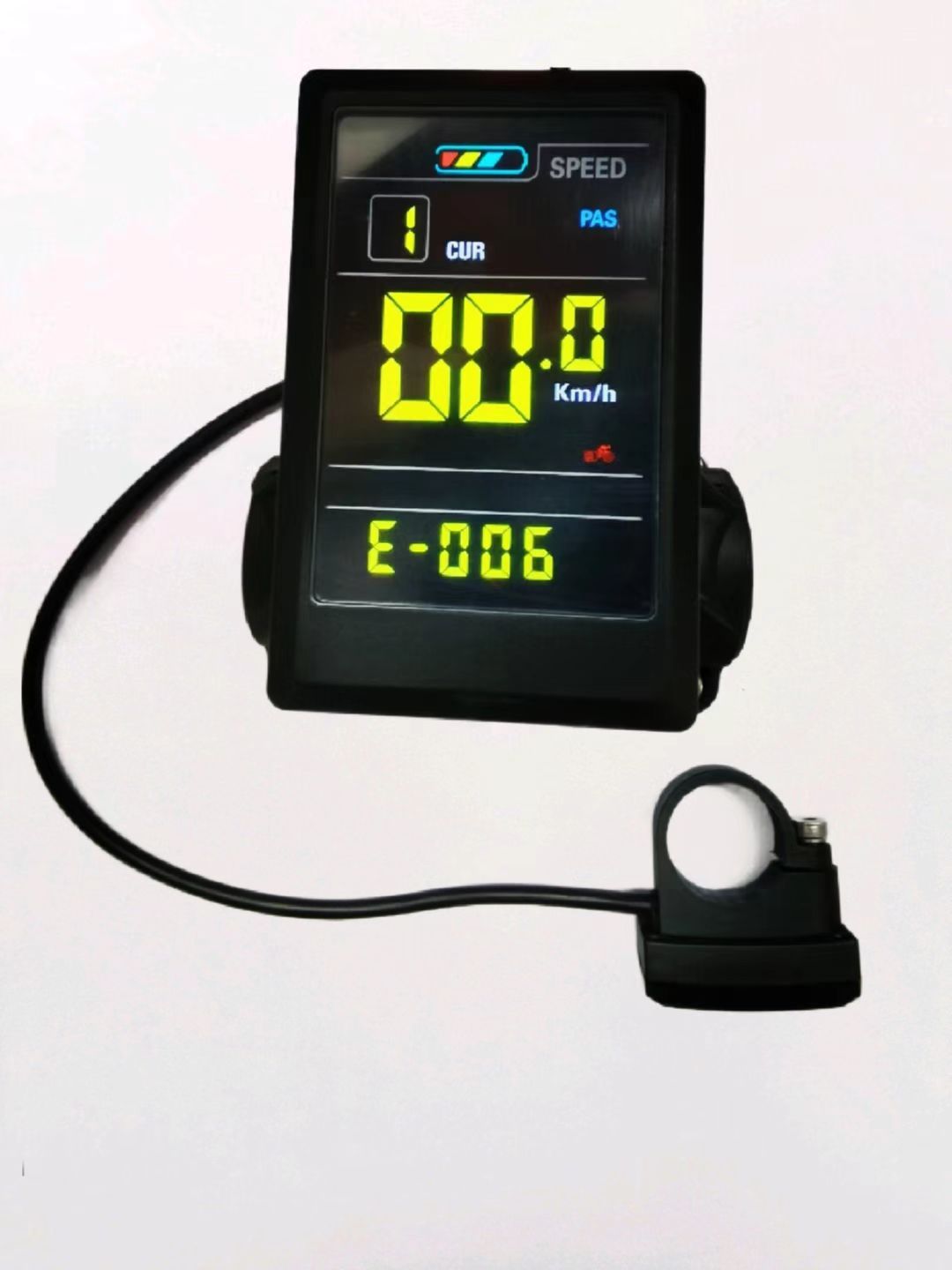

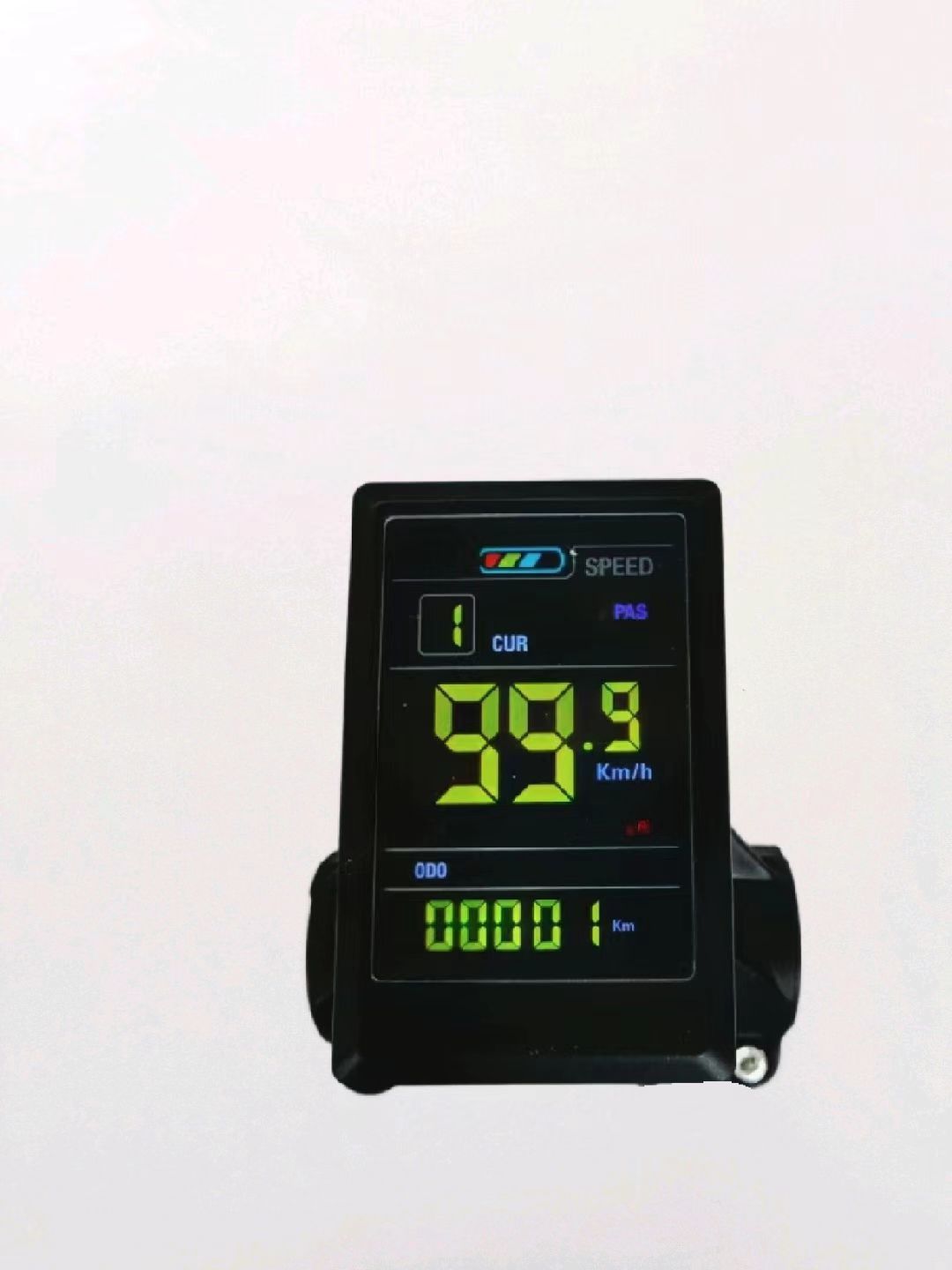

electric bicycle LCD display TF-M8 display

SKU: 200
LCD-TF-M8 display for electric bike conversion,  clear data, easy installation, easy operation.
0.0 (0 Reviews)
3 Sold
$30.00 $28.00
Received successfully
Coupon Code
CONTINUE SHOPPING
Quantity
-
+
  • electric bicycle LCD display TF-M8 display
  • electric bicycle LCD display TF-M8 display
  • Description
-Product Introduction
  • 3.2inch color VA screen;
  • The external keys meet the requirements of ergonomics and  comfortable to operate;
  • Screen andand compnents limit working temperature:-25~70℃;
  • Speed display:CUR SPEED,MAX SPEED,AVG SPEED;
  • km/mph:can adjust;
  • Battery indicator:Stable battery indicate displaty,not affected by motor’s Rev.Stop
  • Back light: 3 lever from 1 to 3.
  • Pas  9 level control, can adjust to 3/5/ 0 level
  • Range:total range ODO,single range:Trip,single ride Time;
  • Agreement stype:UART

-Dimension




-Display Specification



-What's the meaning of each button of the display?
-Here are some explanations as follows:
Button Function


  • Parement set
    1).Press “up” +”down”together, will enter/exit parament set;Then”M”going to the next set,press up and down to change the set。
2).Parament set detail:
    P01:back light adjust(1 darkest,3:brightest)。
    P02:speed and mileage unit(0km,1mileage)
    P03:voltage level set
    P04:Auto-turn off set(1-60mins,0 means function off)
    P05:PAS level set(UP button to set 3,5,9 level,Down button adjust have 0 level or not,some controller may dont have this option )
    P06:wheel size,the smallest is 0.1 inch
    P07:megnet number,1-99(If the motor is gear motor, shoule set it to :number of magnet* speed Reduction ratio)
    P08:speed limit set,the unit is km/h
    P09:Zero start/none-zero start(0:Zero start,1:None Zero start)
    P10: drive way(0 :PAS only,1:Throttle only,2:Both)
    P11:Pas sensitivity set(1-24)
    P12:Start the Torque sensor set(0:weakest,5:strongest)
    P13:PAS magnet choose(5,8,12)
    P14:controller current limit set(need controller support)
     P15:Throttle drive singal pecentage(not support now)
     P16:Cruse function(not support now)
     P99:Date reset (on this screen long press “up”,long press up ,The display will go into the back reset)
