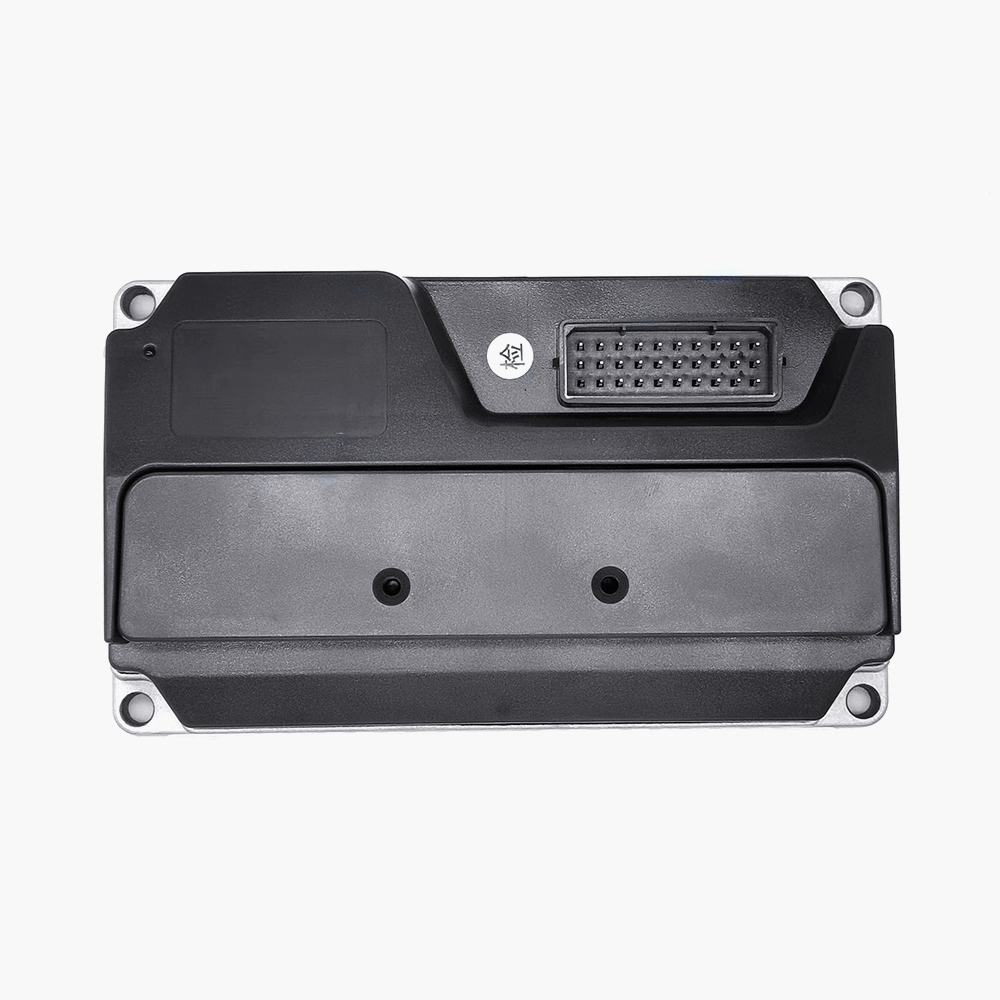

Specification
1 . Voltage: 48-72V , Power:1.5kw ,

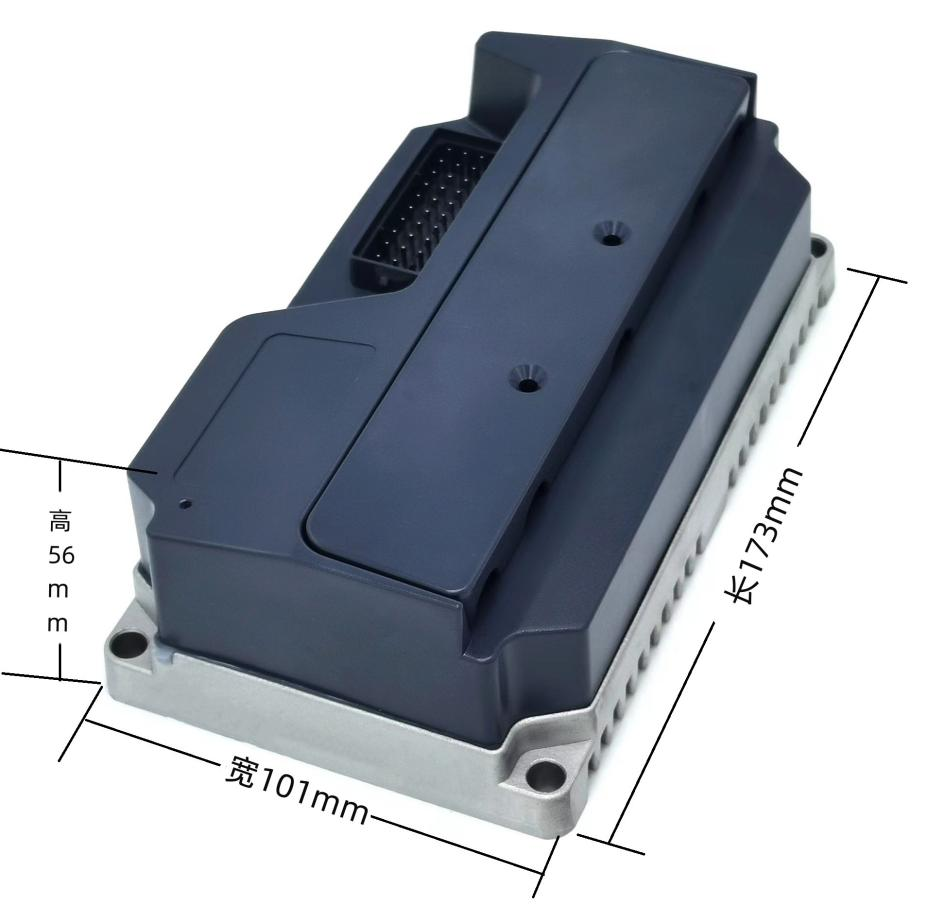

2 . Product Size: 173x101x56mm



Self-learning Function

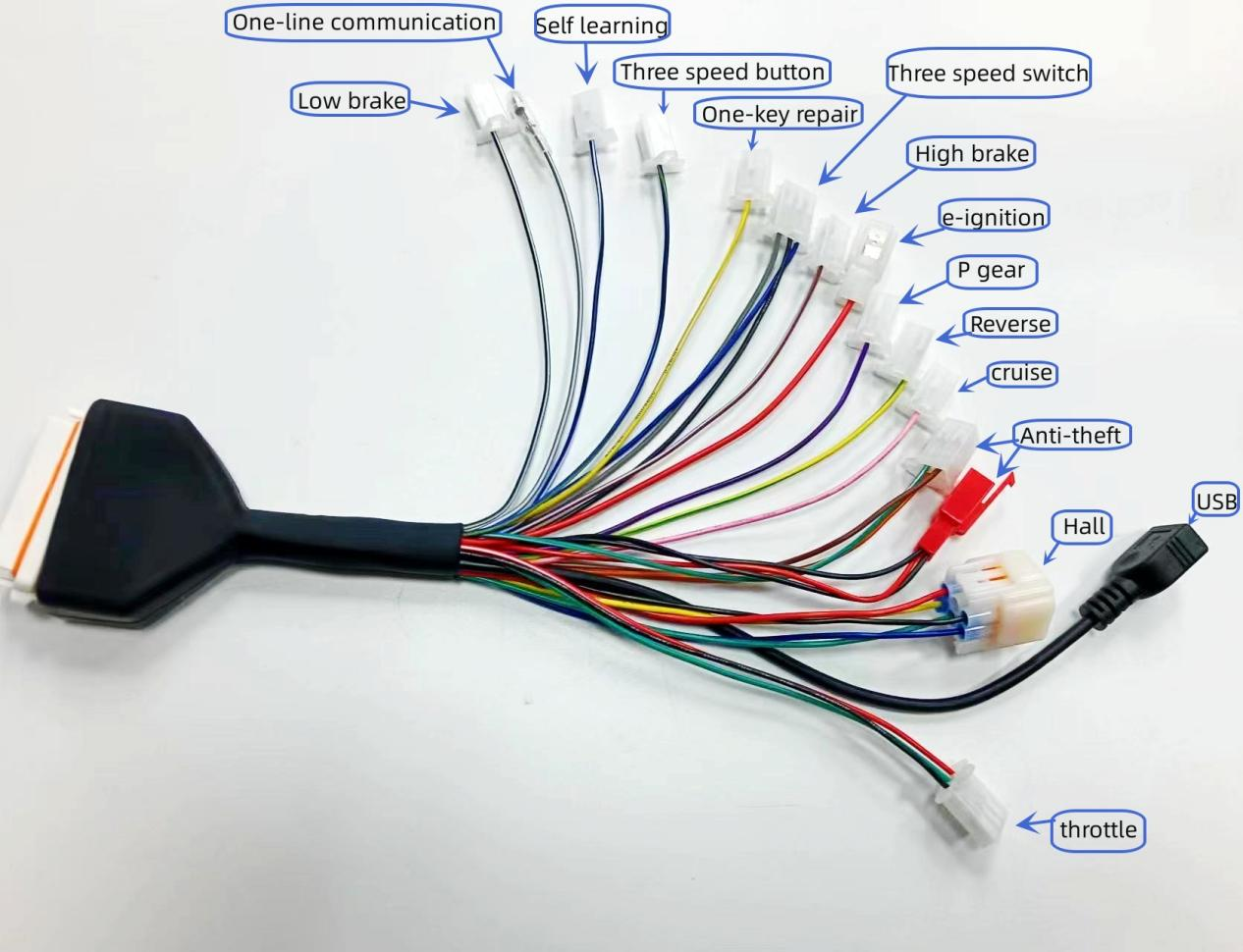

After the controller is installed, lift the double supports of the vehicle to keep the motor in a suspended state. Open the door lock, short-circuit the self-learning wire (blue and white dual-color wire) to the ground. The motor will click a few times and then rotate. At this point, unplug the learning wire. If the rotation direction is incorrect, you can reinsert the learning wire. After the rotation direction changes and the phase learning is completed, send a signal to the handle, and the motor will run at full speed. When the controller indicator light flashes three times, the learning is complete. Note: ① Do not study in the overspeed gear. ② If the motor has Hall damage, the learning cannot be completed. Do not rotate the handle during the learning process.

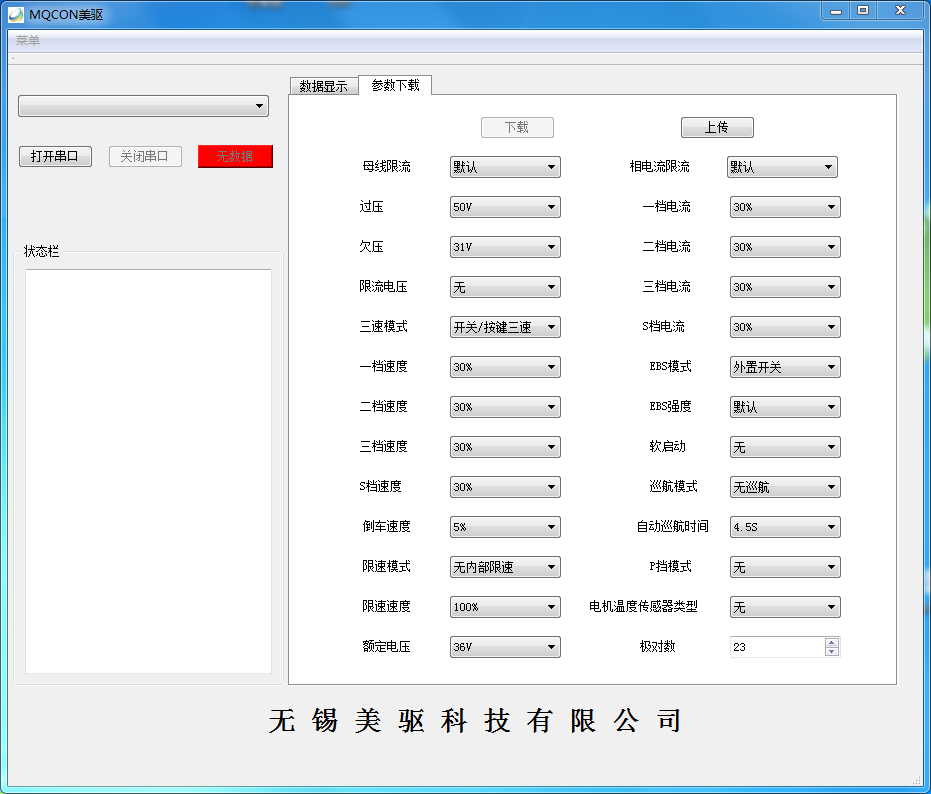

The upper computer interface of the computer version
Note: Each time you go online, you need to click "Upload" first before you can modify the parameters and download

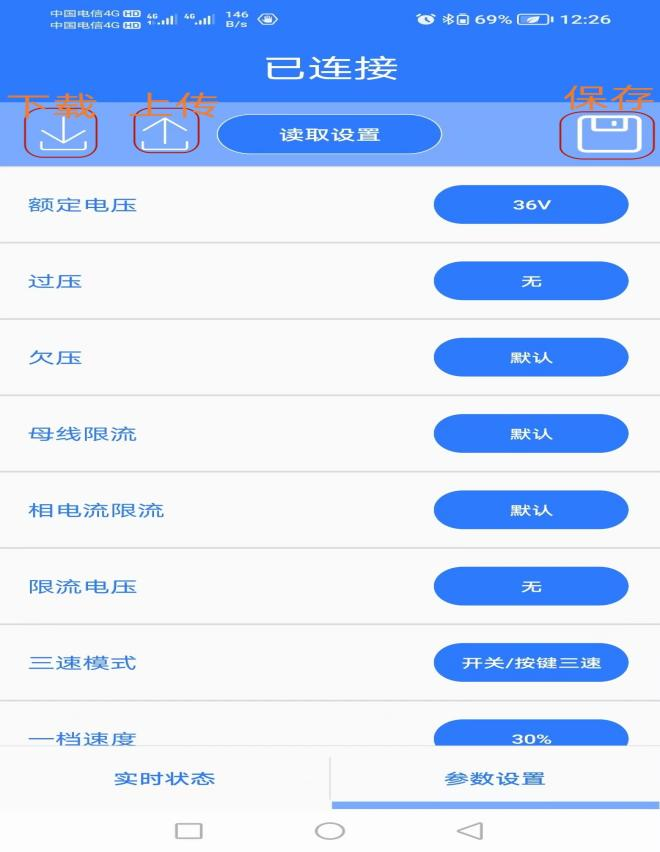

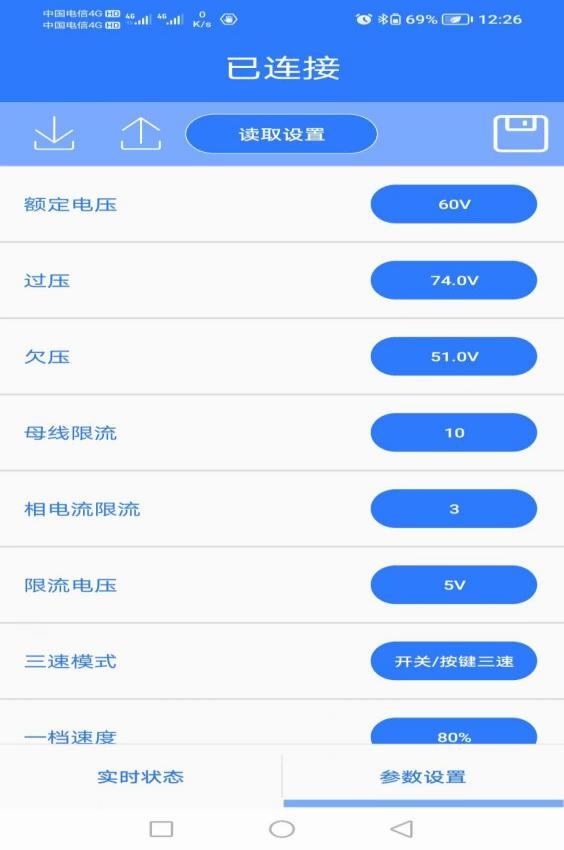

Mobile APP interface

Note: Each time you go online, you need to click "Upload" first before you can modify the parameters and download
